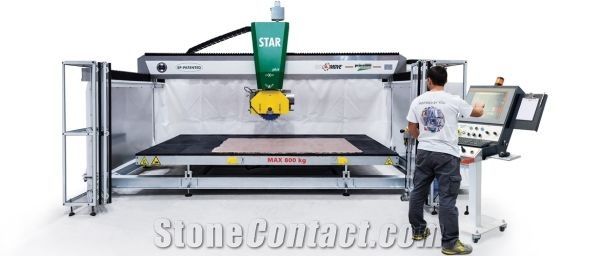

Star Plus Bridge saw cutting machine for marble-granite

Type: Stone Slab Cutting Machines CNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee: Customer pay for installation,Remote guidance installation
Maintenance: Online software upgrade,Regular guidance & maintenance

Contact supplier
Prussiani
Prussiani Engineering
Main Products:
stone machinery, CNC waterjet machine, polishing machine, CNC bridge saw, 5 axes milling machines, CNC working centers
View Company profile
  1. Product Detail
  2. Company Profile
  1. Overview
  2. After-Sale
Machinery Function Features

Technical Data
Parameters
Unit
Star 4
Star 5
Star Plus
Number of vertical cutting spindles
nr
1
1
1
Disc diameter
mm
350min-625max
350min-625max
350min-625max
Max. workable thickness(with 600mm blade)
mm
215
215
215
Tools holder head inclination(A axis blade rotation)
°
-185 +185
-185 +185
-185 +185
C axis blade rotation
°
-
0°÷ 90°
0°÷ 90°
Horizontal stroke(X axis travel)
mm
3600
3600
3600
Bridge transversal stroke(Y axis travel)
mm
2200
2200
2200
Head raising/lowering stroke(Z axis travel)
mm
350
350
350
Vertical cutting spindles motor power
kW
18
18
18
Max. revolutions of the spindle unit
rpm
0 ÷ 6.000
0 ÷ 6.000
0 ÷ 6.000
Horizontal stroke speed(X axis displacement speed)
m/min
45
45
45
Transversal stroke speed (Y displacement speed)
m/min
45
45
45
Vertical stroke speed (Z displacement speed)
m/min
10
10
10
Machine length
mm
5550
5550
5550
Machine width
mm
3550
3550
3550
Machine height
mm
2700
2700
2700
Max. liftable weight with all the vacuum cups activated
kg
800
800
800
Approximate weight without table
kg
4250
4300
4600
Average level of equivalent sound pressure
dbA
80 ÷ 90
80 ÷ 90
80 ÷ 90
Main disk-holder electrospindle torque
nM
72
72
72
Electrospindle tool holder
-
1/2″ gas
1/2″ gas
4 or 5 axes interpolated numerical control X-Y-Z-A-(C)
FAGOR
8070
8070
8070
Axes motors for axis X-Y-Z-A-(C) with absolute encoder
FAGOR
BRUSHLESS
BRUSHLESS
BRUSHLESS
Monitor touch screen
TFT colour
17″
17″
17″
Height of camera support
mm
3.000
3.000
3.000
After-Sale
Warranty: 12 Months
Install and Guarantee: Customer pay for installation,Remote guidance installation
Maintenance: Online software upgrade,Regular guidance & maintenance
