Quarry Hydro-Bags, Rock Splitter

(7 products)
Categories:
Quarry Wire Saw Machine Double Blade Mining Machine Stone Chain Saw Machines Quarry Hydro-Bags, Rock Splitter Rock Crushers, Jaw Crushers Quarry Air Compressors Quarry Mobile Truck Crane Quarry Heavy Equipments Quarry Drilling Machine
Country:
Italy China
Add To Compare
Pompa Hydro Bag
Type: Quarry Hydro-Bags, Rock Splitter Quarry Hydro-Bags
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Hydrobag is a pump for filling cushion with water, for borrow material excavation. Hydro bag is composed by: - pressure power unit Hydro bag with electric engine 5,5 Hp - supported wheelbarrow and water reservoir - safety and distribution valves - aspiration and pressure pipes and aspiration filter - Series of fast couplings - thrust up to 1000 tonnes, dilatation 25-30cm - supply plug and engine - saver interrupter. Cushions are available: CM 50x50, CM 80x80, CM 50X100, CM 100x100, CM 150x150.
Lochtmans
Lochtmans Srl
Contact Supplier
Add To Compare
Pneumatic Tipping Cushion Quarry Air Pushing Bag
Type: Quarry Hydro-Bags, Rock Splitter Quarry Air Pushing Bags
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Splitting cushions in polyester material spread with PVC and FH sealed. Instertable in size of 9mm with adequate protective sheet. Maximum inflated pressure 3 Atm. Max. split to a limit of 45 cm.Complete with an inflatable centre suitable for the use of maximum of 3 cushions simultaneously.
Add To Compare

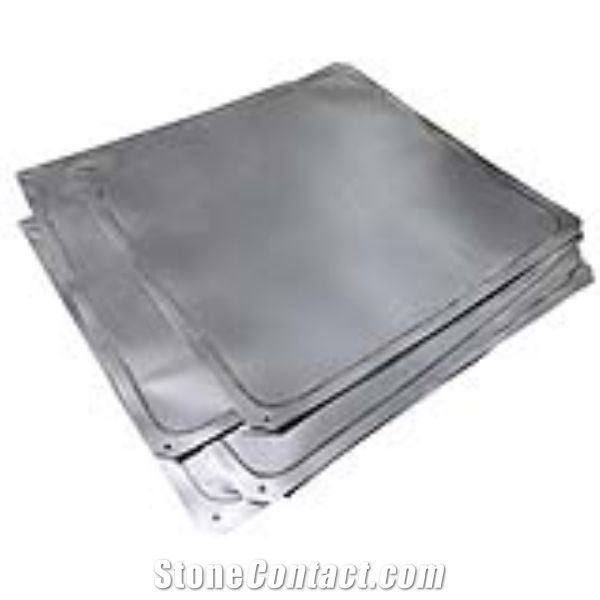

Quarrying Stone Block Pushing Tools Steel Hydro Bags
Type: Quarry Hydro-Bags, Rock Splitter Quarry Hydro-Bags
$15-45
Warranty: 12 Months
Usage: Granite, Marble, Slate, Basalt, Quartzite
Machinery Function Features:
Products Feature: The Pushing Steel Bag is widely used in the marble and stone quarrying industry, specially for stripping blocks from the mountain. The revolutionary aspect of the Pushing steel bag / HYDRO-BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the jacks since the HYDRO-BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut. A complete Pushing Steel Bag / HYDRO BAG equipment consists of: 1. Electric or pneumatic pump unit to create the pressure for the cushions; 2. Safety valves and distribution valves; 3. Pipes, cocks and inlet filters; 4. Quick couplings; 5. A series of HYDRO-BAG cushions.
Add To Compare

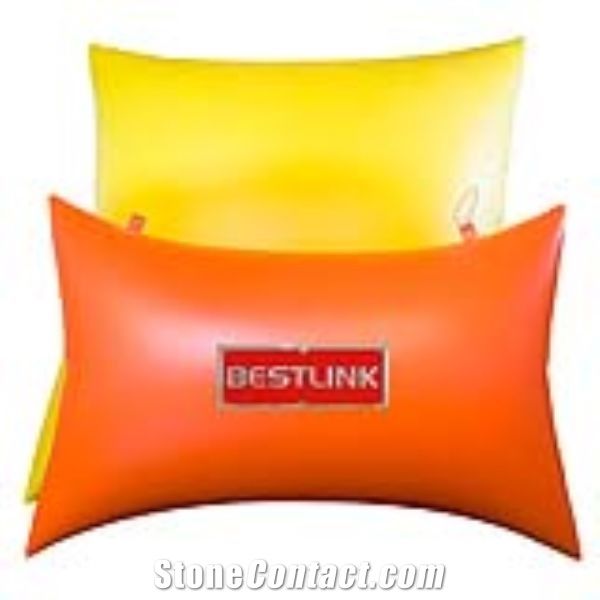

Quarrying Stone Reusable Granite Block Air Pushing Bags
Type: Quarry Hydro-Bags, Rock Splitter Quarry Air Pushing Bags
$180-500
Warranty: 12 Months
Usage: Granite, Marble, Slate, Basalt, Quartzite
Machinery Function Features:
Quarrying Stone Reusable Granite Block Air Pushing Bags Products features: The Pushing Air Bag is manufactured with high-tech materials and processed by special techniques, no frequent problem in split or damage reusable. The thickness of our air bags is less than 7mm which can be put into the cutting gap easily. After inflation by air compressor, the pushing power of the air bags can reach 50 tons to 450 tons according to different size of the pushing bags. Application: It performs primely and is suitable for blocks splitting after wire saw cutting in quarry. Polymer blocks pushing air bag is used to separate the marble, granite, stones(rock mass) block from the basic rock achieving a maximum opening of 45cm at the top. The air bag can separate the block (rock mass) which is having all side wire saw cut faces. And it also can be used on stone factory for pushing stone slabs after wire saw cutting. Advantages: 1,Thickness less than 7mm 2,Durable and repairable 3,Price is economic How to inflating the air pushing bags: 1. Connect the air compressor with the air inlet of control platform 2. Connect air bags with air supply valve on control platform 3. Open the air control valve to inflate 4. Inspect pressure gauge to control the inflating air pressure by adjusting control valve
Add To Compare
HYDROSPLIT HS-230 Hydraulic rock splitting cylinders
Type: Quarry Hydro-Bags, Rock Splitter Hydraulic Rock Splitter
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Special double acting hydraulic cylinder that drives a wedge, mounted upon the shaft, which, when inserted between a pair of lateral feathers, creats a considerable pressure agains the sides of the hole into which the conical assembly has been placed, thus achieving the breakage of the material.
Add To Compare
HYDRO BAG Tipping cushions using high pressure water
Type: Quarry Hydro-Bags, Rock Splitter Quarry Hydro-Bags
Usage: Marble, Limestone, Slate, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
HYDRO BAG Tipping cushions using high pressure water HIDRO-BAG offer the following advantageous: features: -doesnt ruin the block -weight a mere 8 kg - it is only 2mm thick -can be iserted in the diamond r helicoidal saw cut -has a thrust development of 300 tons -works with water, at 30 atm only. -it is provided whit rapid coupling -does not required maintenance -can be thrown after use
Add To Compare
Titano Oleodynamic Quarry Bench Pushing Unit
Type: Quarry Hydro-Bags, Rock Splitter Quarry Hydraulic Jacks
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
A pair of hydraulic cylinders for bench tipping. The unit composed of:Oleodynamic device equipped with a two stages pump for use 700 atm. That can be powered either by tree phase 3 HP electric motor 220/380 Volts with reversing (Tiatano/E Model) or by compustion engine 5 HP and automatic adjuster (Titano/SC model) or by pneumatic motor 3.5 HP(Titani/PN). The unit is composed of: two jacks manufactured in specially treated stell whit chromed cylinder and complete with quick couplings, safety valves and limit switch; each jack ton pushing capacity.
