Stone Surface Processing Machines

Mermer Parlatma Makinası Teknik Özellikler Motor 5.5 Hp 1400 d/dk Kayışlar 13 x 1600 (3 Adet) Flanş Devri 450 Ağırlık 600 Kg. (5 Adet Flanşla Beraber) Garanti Süresi 1 Yıl

1.220 V power supply, the working place is not restricted. 2.Cleaning drying system, Keep slab surface cleaning and reduce the gas consumption. 3.The automatic identification of slab thickness of the gas jet nozzle. 4.Acceleration passing function if no slab go through, to avoid the gas waste burn if no slab to process. 5.Move backward function without artificial force. 6.Delivery speed, the swing speed can be adjusted according to processing slab material at any time . 7.Roast torque with flame return prevention device, safety and energy saving. 8.Roast torque fit external adjustable switch, flaming adjust with easy. 9.Gear transfer, slab running stability, processing of slab surface is more uniform appearance. 10.Three flaming return prevention device, ensure use safety.

This machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive motors (single speed and dual speeds) are upon the clients' choice. It is applicable to surface grinding and polishing of tombstones, slabs and mosaic which needs to change the thickness frequency. The workable for grinding interior / exterior arcs is available upon customer's request.

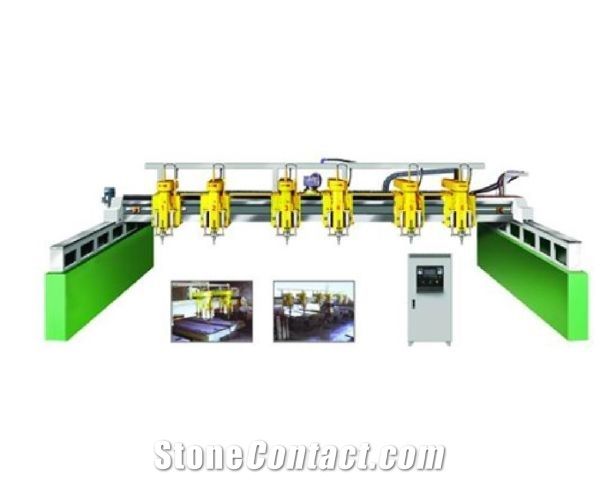

Bridge Polishing Machine working along the slideway up-down by air pressure system.the stone slab moves along bridge like frame and is controlled by PLC controlling systerm and can work automatic. Utand bridge Polishing Machine with more stable performance,better production quality& capacity than any other kind of polisher.our bridge polishing mandrel of polishing head is supported by the plating hard chrome sleeve for preventing bearing additional load.durable and reasonable cost!

The machine applies to polish of marble, granite, and terrazzo panels.

SF—2500/3000 uses round column as its guide slip surface for steady automatic lifting up and down.The main drive has two kinds:single speed and double speeds.The machine is applicable to plane grinding and polishing of slabs with greatly various thickness,tombstones,and stone with design.The worktable can be selected for grinding crafts camber inside and outside.

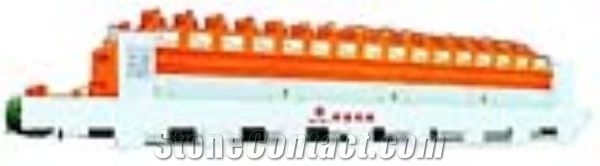

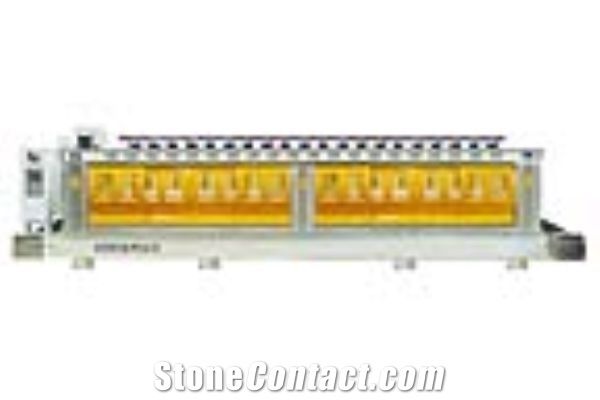

The machine specially fits for grinding and polishing the slabs and strips of granite, marble, other natural and engineered stones, moving on a conveyor belt, using a series of grinding heads or resin abrasive disc. ▶Perfect surface levelling ▶Electric and electronic components in international standards ▶"Fine-honed" surface finish to reduce the number of the following level-ling units, and consequently, the dressing costs.

3 12 Head Automatic Polishing Machine Model No: YMS 650 SLM YMS Brand 3 Caliber 10 Polishing System Automatic Polishing Machine Best Marble Polishing Machine in Turkey YMS Yücel Makine San. ve Tic. Ltd. Şti. Tatlıcak Mah. Umurlu Sk. No:30 Karatay/KONYA Phone: 90.332 202 00 20 Fax: 90.332 202 00 90 Mobile: 90 533 012 29 64 [email protected] http://ymsyucelmakine.com/

Polishing machine for slabs mod. LLBV/2000 M allows to polish and grind slabs of marble of different thickness. Its structure is composed of a normalized grinded base made of electro-welded steel, and of a moving bridge made of stiffened steel. The single, cast iron operating heads are positioned on the bridge. It is installed on the base a nonskid conveyor belt, covered with rubber, to avoid undesirable movements of the slabs during the processing. The bridge motion is by means of wheels in oil bath. It is possible to adjust their speed through an inverter installed on the electric board. All the mechanical guides can be set to adjust the clearance. All the water supply pipes are dimensioned in such a way that they allow an adequate dressing of the abrasive wheels. The electric board is built with steel plate, thickness 15/10, painted with RAL 7032. Its degree of protection is IP 55. A PLC installed inside the electric board controls the adjustments, the movements, the diagnostic and the alarms. A multi-pages graphic terminal makes easier its employment and control. An insulated transformer for 380V network voltage and output 48V is installed inside the electric board for all the control bodies to guarantee the safety of the operator in case of breakdown. All the motor protective devices (fuses, magnetothermics and thermal relays) are dimensioned for each single motor to intervene in case of anomaly to protect it.

The device using the resin disc,the discs light weight,low power consumption,a single grinding head-power is 7.5KW,its power consumption than traditional continuous mill 1/3.Operation control system using PLC terminal control,through the LCD touch screen parameter settings,a grinding head lifting and polishing is controlled by pneumatic pressure,the size of demand in the set value can be adjusted.Grinding head of grinding speed and lateral plate feeding speed by frequency control and in the range of set value set flexibly.Automatic feeding,grinding head intelligent identification plate shape for continuous grinding and polishing of high production efficiency,low cost,a set of device against multi-plehand grinding or bridge type-semi automatic mill production efficiency. Motor:Jiangsheng PLC: Mitsubishi Converter: Yaskawa Bearing:SKF Pneumatic parts: Airtac Touch Screen: Xinje Contactor: LG Switch button: SIEMENS The equipment conforms to the national standard.
